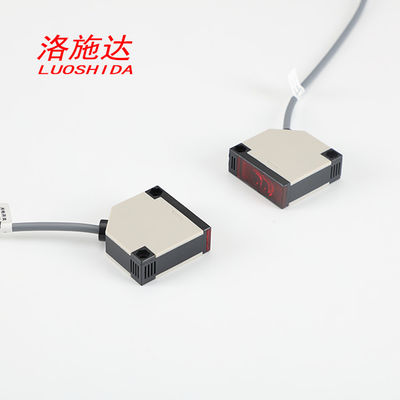

DC Q50 Through Beam Photoelectric Sensor

DC Q50 Through Beam Photoelectric Sensor
DC Q50 Through Beam Photoelectric Sensor

Large Image :  DC Q50 Through Beam Photoelectric Sensor

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE ROHS
Model Number: FQT-50PO
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 3000PCS per month

DC Q50 Through Beam Photoelectric Sensor

Product Name: Square Photoelectric Proximity Sensor Size: 50*50*18mm
Distance: 15M Light Source: Infrared Light(880nm)
Cable: Standard 2M Type: Through Beam Mode
High Light:

Q50 through beam photoelectric sensor


DC through beam photoelectric sensor


15M through beam type sensor

DC Q50 Plastic Shape Infrared Light Through Beam Square Photoelectric Proximity Sensor Switch


Brief quick details information :
Series : the through beam DC Q50 photo sensor
Size : 50*50*18mm
Housing Material : ABS plastic
The light source : Infrared light(880nm)
Sensing Distance Sn(mm): 15M
Operating Voltage : DC 10-30V
Output function : NPN/PNP NO/NC
connection : 2M PVC cable


Specification of the sensor :

DC Q50 square shape photo sensor through beam mode
Size 50*50*18mm
Mode Through beam
Sensing Distance Sn:(M) 15m
Housing Material ABS
Operating Voltage 10-30VDC
DC Ripple ≤10%
Temperature Drift ±10% Sn
Switching Hysteresis <15%
The light source Infrared light (880nm)
Max.Load Current 200mA
No Load Current ≤30mA
Voltage Drop ≤2.5V
Sensitivity adjustment Do not adjust
Response Time <5ms
Short Circuit Protection Yes
Electrical transient protection -
Operating Temperature 0- 55°C
Environmental humidity 35 to 85% RH
The maximum intensity ≤10.000Lux
Protection Category IP55
object size >Φ8mm
Connection D5 2*0.34/3*0.34/4*0.34 2M PVC
DC 3-wire 10-30V NPN NO FQT-5015MNO
DC 4-wire 10-30V NPN NO+NC FQT-5015MNS
DC 3-wire 10-30V PNP NO FQT-5015MPO
DC 4-wire 10-30V PNP NO+NC FQT-5015MPS

DC Q50 Through Beam Photoelectric Sensor 0


Kindly reminder about the sensor application :

1. When installing the photoelectric switch and laser switch, ensure that the switch is perpendicular to the detection object as much as possible. When installing side by side, it must not be installed too densely. There must be a certain interval. The interval distance requirement is directly related to the actual use environment, so as not to cause interference after installation Prevail.


2. The factory detection standard of photoelectric switch and laser switch is a square pure white paper baffle. The actual detection distance will change due to the difference of the color reflectivity of the picked object.


3. Laser and photoelectric products are not suitable for use in dusty, oily, humid and vibrating environments. The operating temperature is 0-50℃. The section of the switch head to the middle amplifier part has an optical fiber cable and cannot be folded. It is not resistant to the interference of the motor and the inverter. It should be kept at a certain distance. The working voltage is DC10-30V and the load current should not exceed 100 mA. (The switch cannot be used in areas involving personal safety, such as anti-pinching.


4. The detection standard for laser diffuse reflection and photoelectric diffuse reflection products is A4 pure white cardboard. The detection distance of the product is greatly affected by the color and reflectance of the detected object. The brighter the color, the better the reflection, the longer the detection distance of the product, the color The darker, the worse the reflection, the shorter the detection distance. If a black object is detected, the actual detection distance may only be about 20% of the factory detection distance.



Q1. What about the samples?

A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.


Q2. What is the MOQ?

A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.


Q3. How about the delivery time?

A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.


Q4. How about the after-sales service?

A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.


Q5. How about the packing?

A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
