|Usage:||Position Sensor,Distance Sensor||Theory:||Inductance Sensor|
|Product Name:||Inductive Proximity Switch||Material:||Stainless Steel|
|Application:||Metal Detection Or Distance Detection||Detection Distance:||Max Can Be 6mm For D6.5 Size|
|Protection Degree:||IP67||Warranty:||12 Months|
Stainless Steel long range inductive proximity sensor,
IP67 long range inductive proximity sensor,
6mm inductive proximity switch

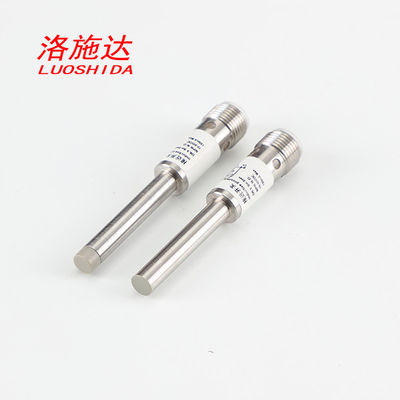

Dc 3 Wire Stainless Steel Long Distance Inductive Proximity Sensor With M12 Connector Type
Product quick details:
Series : D6.5 Long Range Inductive proximity sensor
Size : D6.5*70-M12
Housing Material : stainless steel
Mounting : shielded/Non-shielded
Sensing Distance Sn(mm): 2mm/3mm/4mm/6mm
Operating Voltage : DC 10-30V
Output function : NPN/PNP NO/NC
Protection Category : IP67
connection : M12 4 pin connector
Specification of the sensor :
|D6.5 long range inductive proximity sensor with M12 connector|
|Size||D6.5 * 70mm|
|Sensing Distance Sn(mm)||2mm / 3mm||4mm / 6mm|
|Housing Material||Stainless steel|
|With or Without LED||● with LED|
|No Load Current||<10mA|
|Switching Frequency||1KHz / 500Hz||800Hz / 400Hz|
|Response Time||0.1ms / 0.5ms||0.2ms / 1ms|
|Repeat Accuracy||<3.0%(Sr) / <5.0%(Sr)||<3.0%(Sr)|
|Operating Temperature||-25°C- +70°C|
|Short Circuit Protection||YES|
|Overload Trip Point||180mA|
|EMC||RFI>3V/M / EFT>1KV / ESD>4KV(contact)|
|Shock/Vibration||IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2|
|Material Active Face||PBT|
|Connection||with M12 4 pin connector|
|DC 3 wire 10-30V NPN NO||I1D6.5*NO-M8-70C||I2D6.5*NO-M8-70C|
|DC 3 wire10-30V NPN NC||I1D6.5*NC-M8-70C||I2D6.5*NC-M8-70C|
|DC 3 wire 10-30V PNP NO||I1D6.5*PO-M8-70C||I2D6.5*PO-M8-70C|
|DC 3 wire 10-30V PNP NC||I1D6.5*PC-M8-70C||I2D6.5*PC-M8-70C|
Friendly reminder about the sensor:
1.There are two types of proximity switches, flush and non-flush. If the mounting bracket is made of metal, the shell of the non-flush switch must be exposed to a certain length during installation. For flush installation, no exposure or only a small amount of exposure is required. If installed side by side, There must be a certain interval between the switches. The specific interval is subject to no interference after installation. If the mounting bracket is non-metal, then there is no installation limit on the distance to find the object.
2.The factory inspection standard of the inductive proximity switch is a 1mm thick square Fe37 iron sheet. The detection distance in actual application will vary with the material of the object to be tested.
3.Capacitive proximity switches can detect almost all objects with static electricity. The detection distance of the product will be affected by the thickness, size, conductivity, and surface flatness of the detected object. The thicker the detected object, the larger the size. The stronger the conductivity, the smoother the surface, the easier it is to detect, and the longer the detection distance.
Q1 , What about the samples?
A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.
Q2, What is the MOQ?
A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.
Q3, How about the delivery time?
A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.
Q4, How about the after-sales service?
A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.
Q5, How about the packing?
A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
