3 Wire Diffuse Photoelectric M12 Proximity Sensor With Cable Type

Certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
I'm Online Chat Now

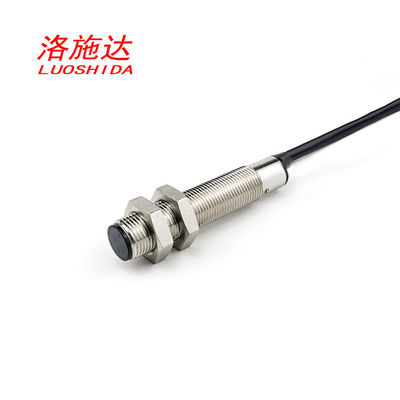

3 Wire Diffuse Photoelectric M12 Proximity Sensor With Cable Type

3 Wire Diffuse Photoelectric M12 Proximity Sensor With Cable Type
3 Wire Diffuse Photoelectric M12 Proximity Sensor With Cable Type

Large Image :  3 Wire Diffuse Photoelectric M12 Proximity Sensor With Cable Type

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE ROHS
Model Number: FTD-12300NO
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 1000PCS per month

3 Wire Diffuse Photoelectric M12 Proximity Sensor With Cable Type

Description
Product Name: Diffuse Photoelectric Sensor Output: Digital Sensor,photoelectric Proximity Switch
Type: Photoelectric Sensor Theory: Infrared Photoelectric Sensor
Protection Degree: IP65 Warranty: 12 Months
Detection Distance: 50--300mm(adjustable) Voltage: 10-30VDC
High Light:

Diffuse m12 proximity sensor Luoshida

,

Luoshida Diffuse m12 proximity sensor

,

Luoshida Cable Type three wire proximity sensor

DC 3 wire M12 diffuse photoelectric proxmity sensor with cable type

Products description :

Series : DC M12 diffuse photoelectric sensor
Size : M12*1*60mm
Housing Material : brass nickel plated
The light source : Infrared light(880nm)
Sensing Distance Sn(mm): 200mm / 300mm adjustable
Operating Voltage : DC 10-30V
Output function : NPN/PNP NO/NC
Connection : 2M PVC cable

Specification of the sensor :



DC M12 phelectric sensor diffuse mode with cable type
Size M12*60mm
Mode Diffuse
Sensing Distance Sn:(mm) 100mm adjustable 200mm adjustable 300mm adjustable
Housing Material Brass Nickel plated
Operating Voltage 10-30VDC
DC Ripple ≤10%
Temperature Drift ±10%Sn
Switching Hysteresis <15%
The light source Infrarel light (880nm)
Max.Load Current 200mA
No Load Current ≤30mA
Voltage Drop ≤2.5V
Sensitivity adjustment Trimmer 1turn
Response Time <5ms
Short Circuit Protection Yes
Electrical transient protection Yes
Operating Temperature 0- 55°C
Environmental humidity 35 to 85% RH
The maximum intensity ≤10.000Lux
Protection Category IP65
object size 10 *10cm white board
Connection D4 3*0.15 PVC 2M
DC 3-wire 10-30V NPN NO FTD-12 * NO
DC 4-wire 10-30V NPN NO+NC FTD-12 * NS
DC 3-wire 10-30V PNP NO FTD-12 * PO
DC 4-wire 10-30V PNP NO+NC FTD-12 * PS


3 Wire Diffuse Photoelectric M12 Proximity Sensor With Cable Type 0

Company profile :



Founded in 2012, Luoshida Sensor (dongguan) Co., Ltd. is a high-tech enterprise focusing on development, production, sales and service of sensors.For many years, it has been committed to development and production of proximity sensors, laser sensors, photoelectric sensors, and fiber optical sensors.Product development and production are designed and controlled in strict accordance with IEC Publication. By far, it has boasted a wealth of high-tech personnel with abundant sensor experience, advanced production technology and perfect testing equipment.

Our products have passed strict international standards tests which include EMC (electromagnetic compatibility), IP (Ingress Protection), vibration impact, high and low temperature and passed the EU CE Certification and ROHS testing.



We always adhere to take scientific and technological progress as guidance, insist on the "people-oriented, honesty and pragmatism, quality first, customer first" concept, and constantly improve ourselves in the development,providing customers with multiple proximity sensors and multi-directional fast technical support in accordance with international standards with latest technology, best quality and excellent service.



3 Wire Diffuse Photoelectric M12 Proximity Sensor With Cable Type 1

FAQ :

Shipping ways
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the istallation of the parts. if you have any questions, please do not hesitate to contact us at any time.
