Product Details:
|
| Product Name: | M18 Namur Proximity Sensor | Size: | M18*35mm Tube |
|---|---|---|---|
| Material: | Brass With Nickel | Mounting: | Flush Or Non-flush |
| Distance: | 5mm Or 8mm | Voltage: | 6-12VDC |
| High Light: | Cylindrical Namur Inductive Proximity Sensor,12V Namur Inductive Proximity Sensor,M18 inductive namur sensor |
||

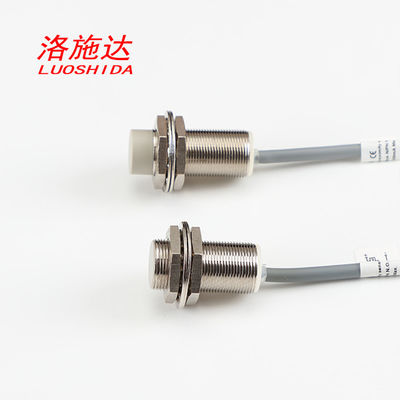

DC 6-12V M18 Brass With Nickel Tube Cylindrical Namur Proximity Sensor Switch
Product description :
Series : M18 NAMUR Proximity Sensor
Size : M18*1*35mm
Housing Material : Brass nickel plated
Mounting : shielded/Non-shieldedN
Sensing Distance Sn(mm) : 5mm/8mm
Operating Voltage : DC 6-12V
Output function : NC
Connection : 2M PVC cable
Specification of the sensor :
| DC M18 NAMUR Proximity Sensor | ||
| Size | M18*1*35mm | M18*1*43mm |
| Mounting | shielded | Non-shielded |
| Sensing Distance Sn(mm) | 5mm | 8mm |
| Housing Material | Brass nickel plated | |
| With or Without LED | without LED | |
| Operating Voltage | 6-12VDC | |
| Ripple | - | |
| No Load Current | >2.2mA(OFF)< 1.1mA(ON) | |
| Switching Frequency | 800Hz | 500Hz |
| Response Time | 0.1ms | |
| Switching Hysteresis | <15%(Sr) | |
| Repeat Accuracy | 3%(Sr) | |
| Protection Category | IP67 | |
| Operating Temperature | -25°C - +70°C | |
| Temperature Drift | 10%(Sr) | |
| Short Circuit Protection | - | |
| Overload Trip Point | - | |
| The time of Delay start | <10ms | |
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) | |
| Shock/Vibration | IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2 | |
| Material Active Face | PBT | |
| Connection | D5.0 2*0.34 2M PVC | |
| NAMUR | I1B1805NA | I2B1808NA |
FAQ :
Q1 , What about the samples?
A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.
Q2, What is the MOQ?
A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.
Q3, How about the delivery time?
A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.
Q4, How about the after-sales service?
A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.
Q5, How about the packing?
A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
