Product Details:
|
| Product Name: | Analog Proximity Sensor | Mounting: | Flush Or Non-flush |
|---|---|---|---|
| Operating Voltage: | 18-30VDC | Output: | 4-20mA |
| Connection Way: | With 2M Cable | Material: | Brass With Nickel |
| High Light: | M30 Analog Inductive Proximity Sensor,Analog Inductive Proximity Sensor DC,3 Wire m30 proximity sensor |
||

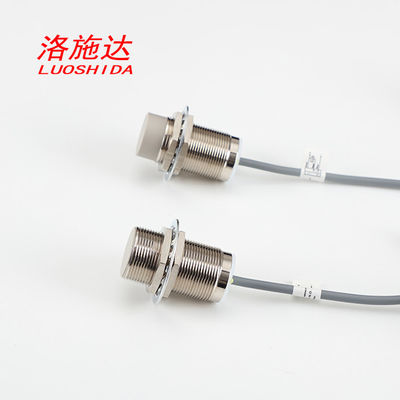

DC 3 Wire M30 Anlog Inductive Proximity Sensor With 4-20mA Current Output With Cable Type
Brief introduction about the sensor :
Series : M30 Analog Inductive Current output sensor
Size : M30*1.5*55mm
Housing Material : brass nickel plated
Mounting : flush or non-flush
Sensing Distance Sn(mm) : 10mm/15mm
Operating Voltage : DC 18-30V
Output function : 4-20mA/0-20mA
Protection Category : IP67
connection : 2M PVC cable
Datasheet of the sensor :
| DC 3 wire M30 Analog Inductive Current output sensor with cable | ||
| Size | M30*55mm | |
| Mounting | shielded | Non-shielded |
| Sensing Distance Sn(mm) | 1.0-10.0mm | 1.0-15mm |
| Housing Material | Brass nickel plated | |
| With or Without LED | Without LED | |
| Operating Voltage | 18-30VDC | |
| Ripple | <10% | |
| No Load Current | <15mA | |
| Output Current/Load Resistor | 4-20mA/200ΩMax. | |
| Linearity | <10%(Sr) | |
| Repeat Accuracy | 0.02mm | |
| Ambient Temperature | -25°C - +70°C | |
| Temperature Drift | <5%(Sr) | |
| Short Circuit Protection | - | |
| Reverse Polarity Protection | YES | |
| Protection Degree | IP67 | |
| Switch Frequency Max. | 100Hz | |
| Time Delay Before Availability | - | |
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) | |
| Shock/Vibration | IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2 | |
| Material Active Face | PBT | |
| Connection | 5.0Φ 3*0.15 2M PVC | |
| Inductive Current Output | I1B30*GI-4-20mA | I2B30*GI-4-20mA |
FAQ :
Q1 , What about the samples?
A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.
Q2, What is the MOQ?
A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.
Q3, How about the delivery time?
A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.
Q4, How about the after-sales service?
A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.
Q5, How about the packing?
A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
