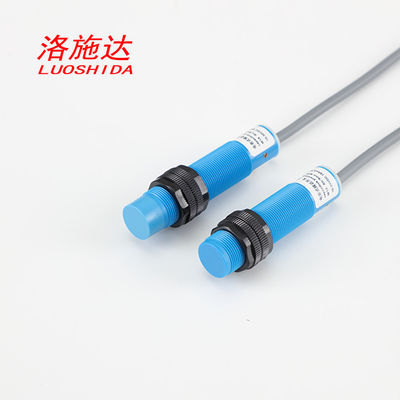

M18 Capacitive Proximity Sensor Switch DC Plastic Cylindrical Distance Adjustable

M18 Capacitive Proximity Sensor Switch DC Plastic Cylindrical Distance Adjustable
M18 Capacitive Proximity Sensor Switch DC Plastic Cylindrical Distance Adjustable

Large Image :  M18 Capacitive Proximity Sensor Switch DC Plastic Cylindrical Distance Adjustable

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE ROHS
Model Number: C2P18*PO
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 3000PCS per month

M18 Capacitive Proximity Sensor Switch DC Plastic Cylindrical Distance Adjustable

Description
Name: M18 Capacitvie Proximity Sensor Material: PBT
Distance: 2-15mm Adjustable Mounting: Flush Or Non-flush
Housing Color: Blue Cable Length: Standard 2M
High Light:

M18 capacitive proximity sensor switch

,

capacitive proximity sensor switch DC

,

Adjustable capacitive proximity

DC M18 Plastic Cylindrical Distance Adjustable Capacitive Proximity Sensor Switch



Quick detail information :


Series : M18 Capacitive proximity sensor
Size : M18*1*75
Housing Material : PBT
Mounting : Shielded/Non-shielded
Sensing Distance Sn(mm): 2-15mm adjustable
Operating Voltage : DC 10-40V
Output function : NPN/PNP NO/NC/NO+NC
Protection Category : IP67
connection : 2M PVC cable



Specification of the sensor :



DC M18 Capacitive proximity sensor with cable
Size M18*75mm
Mounting ●shielded ○ Non-shielded
Sensing Distance Sn(mm) 1~8mm adjustable 1~15mm adjustable
Housing Material PBT
With or Without LED ● with LED
Operating Voltage 10-40VDC
Ripple <10%
No Load Current <10mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 50Hz
Response Time 1.5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5%(Sr)
Protection Category IP67
Operating Temperature -25°C - +70°C
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 180mA
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face PBT
Connection D5 3*0.15 2M PVC
DC 3 wire 10-30V NPN NO C1P18*NO C2P18*NO
DC 3 wire 10-30V NPN NC C1P18*NC C2P18*NC
DC 3 wire 10-30V PNP NO C1P18*PO C2P18*PO
DC 3 wire 10-30V PNP NC C1P18*PC C2P18*PC
DC 3 wire 10-30V NPN NO+NC C1P18*NS C2P18*NS
DC 3 wire 10-30V PNP NO+NC C1P18*PS C2P18*PS



M18 Capacitive Proximity Sensor Switch DC Plastic Cylindrical Distance Adjustable 0

FAQ :



Q1 , What about the samples?

A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.



Q2, What is the MOQ?

A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.



Q3, How about the delivery time?

A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.



Q4, How about the after-sales service?

A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.



Q5, How about the packing?

A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
