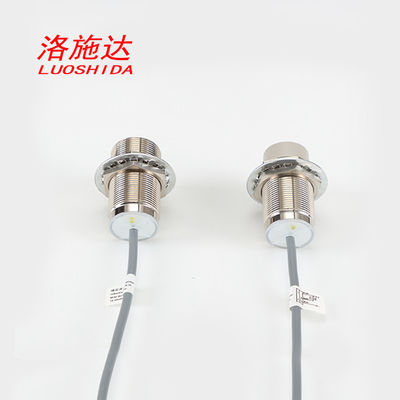

M30 Long Distance Inductive 2 Wire Proximity Switch DC 2 Wire 10-60V With Cable Type

Certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
I'm Online Chat Now

M30 Long Distance Inductive 2 Wire Proximity Switch DC 2 Wire 10-60V With Cable Type

M30 Long Distance Inductive 2 Wire Proximity Switch DC 2 Wire 10-60V With Cable Type
M30 Long Distance Inductive 2 Wire Proximity Switch DC 2 Wire 10-60V With Cable Type

Large Image :  M30 Long Distance Inductive 2 Wire Proximity Switch DC 2 Wire 10-60V With Cable Type

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 3000PCS per month

M30 Long Distance Inductive 2 Wire Proximity Switch DC 2 Wire 10-60V With Cable Type

Description
Product Name: M30 2 Wire Proximity Sensor Voltage: 10-60VDC
Size: M30*55mm Distance: 10mm/15mm/25mm
Material: Brass Nickel Plated Output: NO NC
High Light:

Inductive 2 wire proximity switch

,

Long Distance 2 wire proximity switch

,

M30 proximity 2 wire

DC 2 Wire 10-60V M30 Long Distance Inductive Proximity Sensor Switch With Cable Type



Product brief introduction :

Series : M30 DC 2-Wire Inductive Proximity Sensor
Size : M30*1.5*55mm
Housing Material : brass nickel plated
Mounting : Shielded/Non-shielded
Sensing Distance Sn(mm): 10mm/15mm/25mm
Operating Voltage : 10-60V DC
Output function : NO/NC
connection : 2M PVC cable





Specification of the sensor :

M30 DC 2 wire inductive proximity sensor with cable
Size M30*1.5*55mm
Mounting ● shielded ○ Non-shielded
Sensing Distance Sn(mm) 10mm/16mm 15mm/25mm
Housing Material Brass nickel plated
With or Without LED ● with LED
Operating Voltage 10-60VDC
Ripple <10%
No Load Current 1KV,1ms,1kohm
Max.Load Current 3-100mA
Leakage Current <0.8mA
Voltage Drop <6V
Switching Frequency 300Hz/100Hz 300Hz/100Hz/100Hz
Response Time 1.5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <3%5%(Sr)
Protection Category IP67
Operating Temperature -25°C - +70°C
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 120mA
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face PBT
Connection D5 2*0.34 2M PVC cable
DC 2 wire 10-60V CO I1B30*CO I2B30*CO
DC 2 wire 10-60V CC I1B30*CC I2B30*CC







Friendly reminder about the sensor:


1.There are two types of proximity switches, flush and non-flush. If the mounting bracket is made of metal, the shell of the non-flush switch must be exposed to a certain length during installation. For flush installation, no exposure or only a small amount of exposure is required. If installed side by side, There must be a certain interval between the switches. The specific interval is subject to no interference after installation. If the mounting bracket is non-metal, then there is no installation limit on the distance to find the object.


2.The factory inspection standard of the inductive proximity switch is a 1mm thick square Fe37 iron sheet. The detection distance in actual application will vary with the material of the object to be tested.


3.Capacitive proximity switches can detect almost all objects with static electricity. The detection distance of the product will be affected by the thickness, size, conductivity, and surface flatness of the detected object. The thicker the detected object, the larger the size. The stronger the conductivity, the smoother the surface, the easier it is to detect, and the longer the detection distance.



Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;


Delivery time :
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the istallation of the parts. if you have any questions, please do not hesitate to contact us at any time.
