10-30V 3 Wire Metal Proximity Sensor M4 Small Visible Light 660nm Through Beam Mode

Certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
I'm Online Chat Now

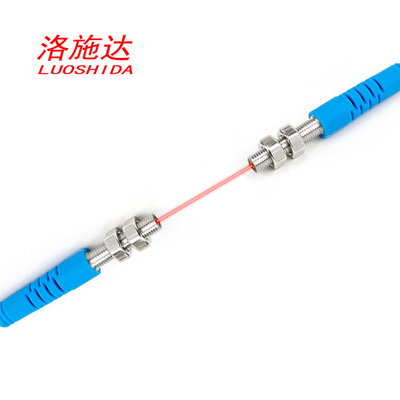

10-30V 3 Wire Metal Proximity Sensor M4 Small Visible Light 660nm Through Beam Mode

10-30V 3 Wire Metal Proximity Sensor M4 Small Visible Light 660nm Through Beam Mode
10-30V 3 Wire Metal Proximity Sensor M4 Small Visible Light 660nm Through Beam Mode
10-30V 3 Wire Metal Proximity Sensor M4 Small Visible Light 660nm Through Beam Mode 10-30V 3 Wire Metal Proximity Sensor M4 Small Visible Light 660nm Through Beam Mode

Large Image :  10-30V 3 Wire Metal Proximity Sensor M4 Small Visible Light 660nm Through Beam Mode

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE ROHS
Model Number: LTT-04PO
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 1000PCS per month

10-30V 3 Wire Metal Proximity Sensor M4 Small Visible Light 660nm Through Beam Mode

Description
Product Name: Laser Proximity Sensor Type: Through Beam Mode
Light Source: Red(660nm) Size: M4 Diameter
Voltage: 10-30VDC Operating Temperature: 0°C - 50°C
High Light:

3 Wire metal proximity sensor Luoshida

,

3 Wire metal proximity sensors Luoshida

,

m4 proximity sensor Luoshida

DC 3 Wire M4 Small Visible Light 660nm Through Beam Mode Laser Proximity Sensor Switch



Quick detail information about the sensor :

Series: M4 laser sensor through-beam
Size: M4*0.5*20mm
Housing Material: Stainless steel
Spot size: the Min.0.5mm spot
The light source: Red(660nm)
Sensing Distance Sn:20m
Operating Voltage: DC 10-30V
Output function : NPN/PNP NO/NC
Connector : 2M PVC cable



Specification about the sensor :

DC M4 Ultra-Mini laser sensor through beam mode
Size M4*20mm
Sensing Distance Sn:(M) 20m
Spot size Can be customized 0.5mm small spot
Housing Material Stainless steel
●With or Without LED ● With LED
The light source Red(660nm)
Operating Voltage 10-30VDC
DC Ripple <10%
No Load Current <10mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 100Hz
Response Time 5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5-10%(Sr)
Protection Category IP65
Operating Temperature 0°C - 50°C
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 180mA
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face Filter Mirror
Connection D3.8 3*0.15 black PVC 2M
DC 3-wire 10-30V NPN NO LTT-0420MNO
DC 3-wire 10-30V NPN NC LTT-0420MNC
DC 3-wire 10-30V PNP NO LTT-0420MPO
DC 3-wire 10-30V PNP NC LTT-0420MPC

10-30V 3 Wire Metal Proximity Sensor M4 Small Visible Light 660nm Through Beam Mode 0



Kindly reminder about the sensor application :

1. When installing the photoelectric switch and laser switch, ensure that the switch is perpendicular to the detection object as much as possible. When installing side by side, it must not be installed too densely. There must be a certain interval. The interval distance requirement is directly related to the actual use environment, so as not to cause interference after installation Prevail.



2. The factory detection standard of photoelectric switch and laser switch is a square pure white paper baffle. The actual detection distance will change due to the difference of the color reflectivity of the picked object.



3. Laser and photoelectric products are not suitable for use in dusty, oily, humid and vibrating environments. The operating temperature is 0-50℃. The section of the switch head to the middle amplifier part has an optical fiber cable and cannot be folded. It is not resistant to the interference of the motor and the inverter. It should be kept at a certain distance. The working voltage is DC10-30V and the load current should not exceed 100 mA. (The switch cannot be used in areas involving personal safety, such as anti-pinching.



4. The detection standard for laser diffuse reflection and photoelectric diffuse reflection products is A4 pure white cardboard. The detection distance of the product is greatly affected by the color and reflectance of the detected object. The brighter the color, the better the reflection, the longer the detection distance of the product, the color The darker, the worse the reflection, the shorter the detection distance. If a black object is detected, the actual detection distance may only be about 20% of the factory detection distance.



FAQ :

Shipping ways
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
