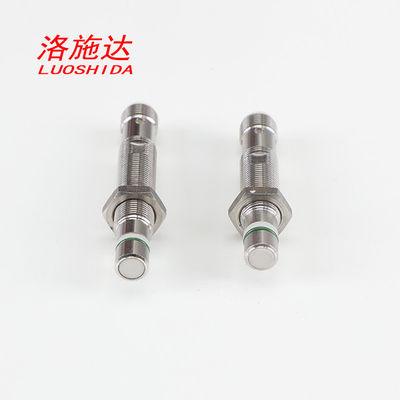

Stainless Steel High Pressure Proximity Sensor DC M12 With M12 4 Pin Plug Connection

Stainless Steel High Pressure Proximity Sensor DC M12 With M12 4 Pin Plug Connection
Stainless Steel High Pressure Proximity Sensor DC M12 With M12 4 Pin Plug Connection

Large Image :  Stainless Steel High Pressure Proximity Sensor DC M12 With M12 4 Pin Plug Connection

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE ROHS
Model Number: P1S12*NO-M12-78C
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 8-12 work days
Payment Terms: T/T
Supply Ability: 1000PCS per month

Stainless Steel High Pressure Proximity Sensor DC M12 With M12 4 Pin Plug Connection

Description
Name: High Pressure Proximity Sensor Size: M12*78mm-M12
Housing Material: Stainless Steel Max. Pressure: 500 Bar
Operating Voltage: 10-30VDC Material Active Face: ZrO2
High Light:

Stainless Steel High Pressure Proximity Sensor

,

High Pressure Proximity Sensor DC

,

M12 sensor proximity inductive

DC M12 Stainless Steel Oil Pressure Inductive Proximity Sensor Swtich With M12 4 Pin Plug Connection



Quick detail for the sensor :

Series : M12 High Pressure Rated Inductive Proximity Sensor
Size : M12*78-M12
Housing Material : stainless steel
Mounting : shielded
Sensing Distance Sn(mm): 1.5mm/2mm
Operating Voltage : DC 10-30V
Output function : NPN/PNP NO/NC
Max. Pressure : 500 bar
Protection Category : IP68
connection : M12 4 pin connector



Specification of the sensor :

DC M12 High Pressure Rated Inductive Proximity Sensor with M12 connector
Size M12*78mm-M12
Mounting ● shielded
Sensing Distance Sn(mm) 1.5mm / 2mm
Housing Material Stainless steel
With or Without LED Without LED
Operating Voltage 10-30VDC
Ripple <10%
No Load Current <10mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 500Hz
Response Time 1.0ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <3.0%(Sr)
Protection Category IP68
Operating Temperature -25°C - +70°C
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 180mA
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active Face ZrO2
Max. Pressure 500 bar
Connection With M12 4pin Connector
DC 3 wire 10-30V NPN NO P1S12*NO-M12-78C
DC 3 wire 10-30V NPN NC P1S12*NC-M12-78C
DC 3 wire 10-30V PNP NO P1S12*PO-M12-78C
DC 3 wire 10-30V PNP NC P1S12*PC-M12-78C

Stainless Steel High Pressure Proximity Sensor DC M12 With M12 4 Pin Plug Connection 0





Friendly reminder about the sensor :
1.There are two types of proximity switches, flush and non-flush. If the mounting bracket is made of metal, the shell of the non-flush switch must be exposed to a certain length during installation. For flush installation, no exposure or only a small amount of exposure is required. If installed side by side, There must be a certain interval between the switches. The specific interval is subject to no interference after installation. If the mounting bracket is non-metal, then there is no installation limit on the distance to find the object.


2.The factory inspection standard of the inductive proximity switch is a 1mm thick square Fe37 iron sheet. The detection distance in actual application will vary with the material of the object to be tested.


3.Capacitive proximity switches can detect almost all objects with static electricity. The detection distance of the product will be affected by the thickness, size, conductivity, and surface flatness of the detected object. The thicker the detected object, the larger the size. The stronger the conductivity, the smoother the surface, the easier it is to detect, and the longer the detection distance.



FAQ :

Q1. What about the samples?

A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.



Q2. What is the MOQ?

A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.



Q3. How about the delivery time?

A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.



Q4. How about the after-sales service?

A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.



Q5. How about the packing?

A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
