Product Details:
|
| Theory: | Inductance Sensor | Product Name: | Square Proximity Sensor |
|---|---|---|---|
| Material: | Plastic ABS | Housing Colore: | Green And Black |
| Operating Voltage: | 10-30V DC | Size: | 40*40*65mm |
| High Light: | Q40 Rectangular Inductive Proximity Sensor,Rectangular Inductive Proximity Sensor DC,360 Degree sensor inductive proximity |
||

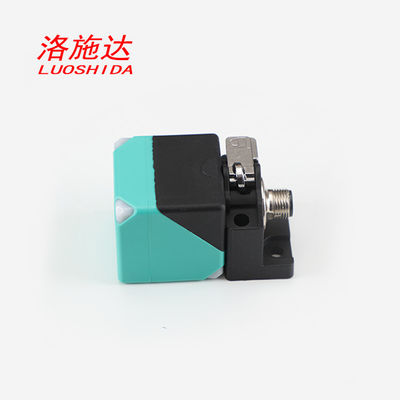

DC Q40 360 Degree Plastice Short Body Square Inductive Proximity Sensor For Position Detector
Quick detail information :
Series : Q40 Square Type Inductive proximity sensor
Size : Q40*40*65mm
Housing Material : ABS plastic
Mounting : shielded/Non-shielded
Sensing Distance Sn(mm): 15mm/20mm/25mm
Operating Voltage : DC 10-30V
Output function : NPN/PNP NO/NC
Protection Category : IP67
connection : M12 4 pin connector
Characters of the sensor :
| Q40S square type shorter Inductive Proximity Sensor with connector | ||
| Size | Q40 * 40 *65 | |
| Mounting | NO shielded | |
| Sensing Distance Sn(mm) | 20mm / 30mm | |
| Housing Material | ABS | |
| With or Without LED | ● with LED | |
| Operating Voltage | 10-30VDC | |
| Ripple | <10% | |
| No Load Current | <10mA | |
| Max.Load Current | 150mA | |
| Leakage Current | <0.01mA | |
| Voltage Drop | <1.5V | |
| Switching Frequency | 500Hz / 300Hz | 300Hz / 150Hz |
| Response Time | 0.5ms / 1ms | 0.5ms / 1ms |
| Switching Hysteresis | <15%(Sr) | |
| Repeat Accuracy | <3.0%(Sr) / <5.0%(Sr) | <3.0%(Sr) / <5.0%(Sr) |
| Protection Category | IP67 | |
| Operating Temperature | -25°C- +70°C | |
| Temperature Drift | <10%(Sr) | |
| Short Circuit Protection | YES | |
| Overload Trip Point | 180mA | |
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) | |
| Shock/Vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 | |
| Material Active Face | ABS | |
| Connection | With M12 4 pin connector | |
| DC 3 wire 10-30V NPN NO | Q40*NO-M12-65C | |
| DC 3 wire 10-30V NPN NC | Q40*NC-M12-65C | |
| DC 3 wire 10-30V PNP NO | Q40*PO-M12-65C | |
| DC 3 wire 10-30V PNP NC | Q40*PC-M12-65C | |
| DC 3 wire 10-30V NPN NO+NC | Q40*NS-M12-65C | |
| DC 3 wire 10-30V PNP NO+NC | Q40*PS-M12-65C | |
Friendly reminder about the sensor :
1.There are two types of proximity switches, flush and non-flush. If the mounting bracket is made of metal, the shell of the non-flush switch must be exposed to a certain length during installation. For flush installation, no exposure or only a small amount of exposure is required. If installed side by side, There must be a certain interval between the switches. The specific interval is subject to no interference after installation. If the mounting bracket is non-metal, then there is no installation limit on the distance to find the object.
2.The factory inspection standard of the inductive proximity switch is a 1mm thick square Fe37 iron sheet. The detection distance in actual application will vary with the material of the object to be tested.
FAQ :
Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.
Payment term :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
Delivery time :
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.
After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
