Product Details:
|
| Product Name: | Label Sensor | Model: | LSD‑CX11 (NPN Type), LSD‑CX11P (PNP Type) |
|---|---|---|---|
| Operating Voltage: | DC 12‑24V ±10% | Max Load Current: | 100mA At DC24V |
| Output Mode: | NPN / PNP, Normally Open / Normally Closed Selectable | Housing Material: | Plastic |

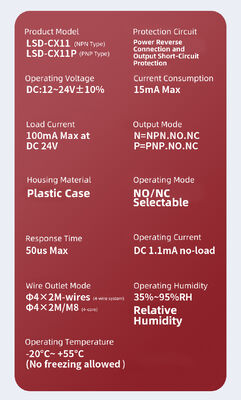

| English Item | English Specification |
|---|---|
| Product Name | Label Sensor |
| Brand | LUOSHIDA |
| Model | LSD‑CX11 (NPN type), LSD‑CX11P (PNP type) |
| Operating Voltage | DC 12‑24V ±10% |
| Max Load Current | 100mA at DC24V |
| Output Mode | NPN / PNP, Normally Open / Normally Closed selectable |
| Housing Material | Plastic |
| Max Response Time | 50us |
| No‑load Current | 15mA Max |
| Operating Temperature | ‑20℃ to +55℃ (No freezing allowed) |
| Operating Humidity | 35%‑95% RH |
| Protection Function | Reverse polarity protection, short‑circuit protection |
| Standard Cable | 4‑core 2M cable |
| Typical Application | Automatic labeling machine, bottle labeling machine, packaging labeling equipment |
Founded in 2012, Luoshida is a high-tech enterprise dedicated to the R&D, production, sales and service of sensors. Its core products cover a wide range of types, including inductive/capacitive proximity sensors, laser displacement sensors, through-beam/diffuse-reflective photoelectric sensors, fiber optic sensors, and color mark sensors, which are widely applied in industrial automation, smart manufacturing and electronic equipment.
