Product Details:
|
| Mounting Type: | Flush / Non-Flush | Sensing Distance: | Flush: 5mm / Non-Flush: 8mm |
|---|---|---|---|
| Housing Material: | Nickel-Plated Copper | Sensing Face: | Plastic |
| Wire Material: | High-Temperature Silicone, Resistant To 250°C | Wire Core Material: | Tin-Plated Copper |
| Output Type: | NPN / PNP | Operating Voltage: | 10-30VDC |
| No-Load Current: | 10mA | Maximum Load Current: | 150mA |
| Switching Frequency: | Flush: 500Hz / Non-Flush: 400Hz |
| Parameter | Specification |
|---|---|
| Brand | JIMOU |

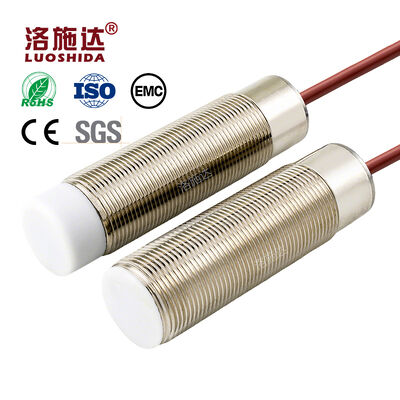

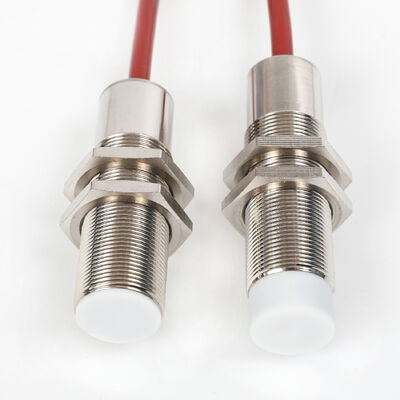

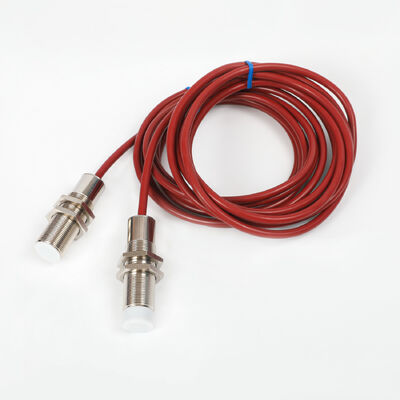

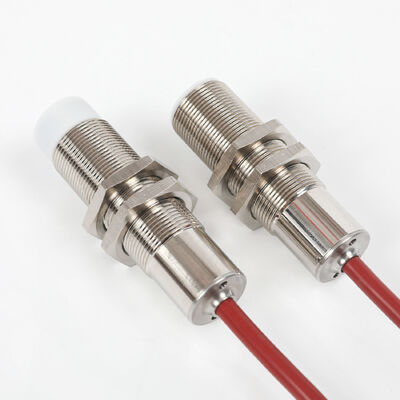

| Product Type | M18 High Temperature Resistant Proximity Sensor |
| Mounting Type | Flush / Non-Flush |
| Sensing Distance | Flush: 5mm / Non-Flush: 8mm |
| Sensor Diameter | 18mm |
| Flush Length | 58mm |
| Non-Flush Length | 66mm |
| Thread Pitch | 1.0mm |
| Hex Dimension | 23.7mm |
| Housing Material | Nickel-Plated Copper |
| Sensing Face | Plastic |
| Wire Material | High-Temperature Silicone, Resistant to 250°C |
| Wire Core Material | Tin-Plated Copper |
| Output Type | NPN / PNP |
| Output Mode | NO / NC |
| Operating Voltage | 10-30VDC |
| No-Load Current | 10mA |
| Maximum Load Current | 150mA |
| Switching Frequency | Flush: 500Hz / Non-Flush: 400Hz |
| Response Time | 0.5ms |
| Switching Hysteresis | <15% (Sr) |
| Protection Rating | IP67 |
| Operating Environment Temperature | 0°C to 150°C |
| Overload Protection Current | 180mA |
| Standard Cable Length | 2m |
| LED Indicator | Yes |
