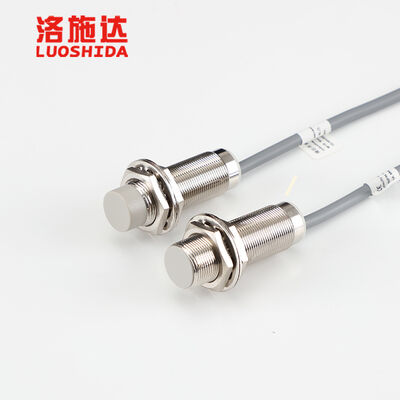

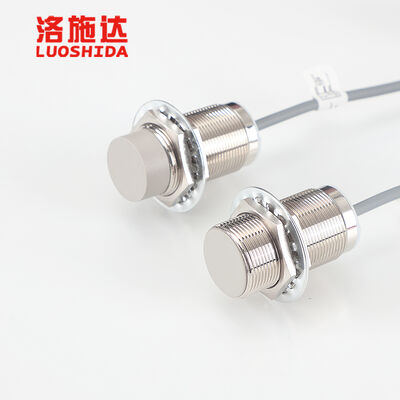

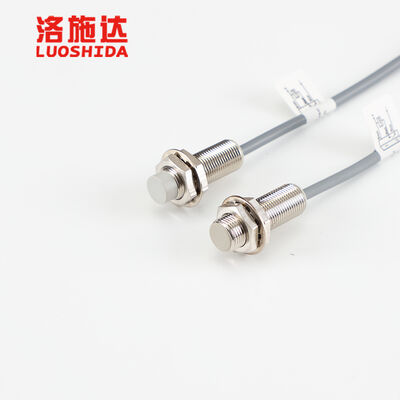

Product Details:
|
| Mounting Type: | Flush / Non-Flush | Operating Voltage: | 10 - 30 VDC |
|---|---|---|---|
| Output Type: | NPN / PNP (NO/NC) | Load Current: | < 200 MA |
| No-load Current: | < 10 MA | Voltage Drop: | < 1.5 V |
| Hysteresis Range: | < 15% Sr | Repeat Accuracy: | < 1.0% Sr |
| Highlight: | M8 threaded proximity sensor,oil-resistant inductive switch,proximity sensor for automotive |
||

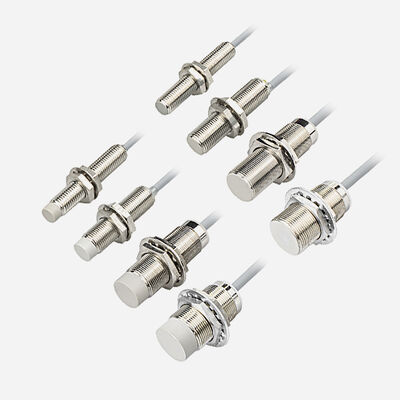

| Parameter | M8 Model | M12 Model | M18 Model | M30 Model |
|---|---|---|---|---|
| Mounting Type | Flush (Shielded) / Non-Flush (Unshielded) | Flush (Shielded) / Non-Flush (Unshielded) | Flush (Shielded) / Non-Flush (Unshielded) | Flush (Shielded) / Non-Flush (Unshielded) |
| Sensing Distance (Sn) | Flush: 1.5 - 2 mm / Non-Flush: 2 - 4 mm | Flush: 2 - 4 mm / Non-Flush: 4 - 8 mm | Flush: 5 - 8 mm / Non-Flush: 8 - 14 mm | Flush: 10 - 15 mm / Non-Flush: 15 - 25 mm |
| Operating Voltage | 10 - 30 VDC | 10 - 30 VDC | 10 - 30 VDC | 10 - 30 VDC |
| Output Type | NPN / PNP (NO / NC Selectable) | NPN / PNP (NO / NC Selectable) | NPN / PNP (NO / NC Selectable) | NPN / PNP (NO / NC Selectable) |
| Switching Frequency | Up to 2 kHz | Up to 1.5 kHz | Up to 1 kHz | Up to 500 Hz |
| Response Time | < 0.5 ms | < 0.5 ms | < 1 ms | < 2 ms |
| Load Current | < 200 mA | < 200 mA | < 200 mA | < 200 mA |
| No-load Current | < 10 mA | < 10 mA | < 10 mA | < 10 mA |
| Voltage Drop | < 1.5 V | < 1.5 V | < 1.5 V | < 1.5 V |
| Hysteresis Range | < 15% Sr | < 15% Sr | < 15% Sr | < 15% Sr |
| Repeat Accuracy | < 1.0% Sr | < 1.0% Sr | < 1.0% Sr | < 1.0% Sr |
| Housing Material | Nickel-Plated Brass / Stainless Steel | Nickel-Plated Brass / Stainless Steel | Nickel-Plated Brass / Stainless Steel | Nickel-Plated Brass / Stainless Steel |
| Sensing Face Material | PBT / POM | PBT / POM | PBT / POM | PBT / POM |
| Protection Category | IP67 (Waterproof & Oil-Proof) | IP67 (Waterproof & Oil-Proof) | IP67 (Waterproof & Oil-Proof) | IP67 (Waterproof & Oil-Proof) |
| Operating Temperature | -25 C to +70 C | -25 C to +70 C | -25 C to +70 C | -25 C to +70 C |
| Circuit Protection | Short-Circuit, Overload & Reverse Polarity | Short-Circuit, Overload & Reverse Polarity | Short-Circuit, Overload & Reverse Polarity | Short-Circuit, Overload & Reverse Polarity |
| Connection Method | 2m PVC Pre-wired Cable / M12 4-Pin Connector | 2m PVC Pre-wired Cable / M12 4-Pin Connector | 2m PVC Pre-wired Cable / M12 4-Pin Connector | 2m PVC Pre-wired Cable / M12 4-Pin Connector |
| Certifications | CE, RoHS, ISO9001 | CE, RoHS, ISO9001 | CE, RoHS, ISO9001 | CE, RoHS, ISO9001 |
Founded in 2012, Luoshida is a high-tech enterprise dedicated to the R&D, production, sales and service of sensors. Its core products cover a wide range of types, including inductive/capacitive proximity sensors, laser displacement sensors, through-beam/diffuse-reflective photoelectric sensors, fiber optic sensors, and color mark sensors, which are widely applied in industrial automation, smart manufacturing and electronic equipment.
FAQ
Relevant information about the service :
Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.
Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.
After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
