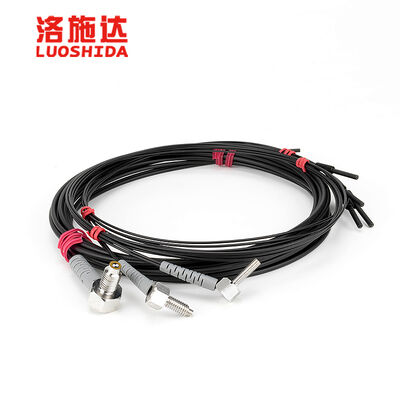

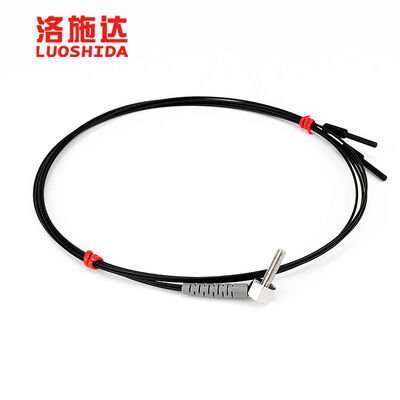

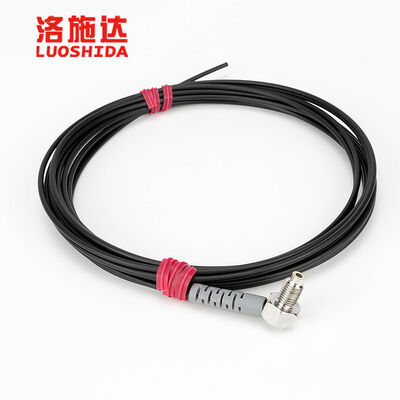

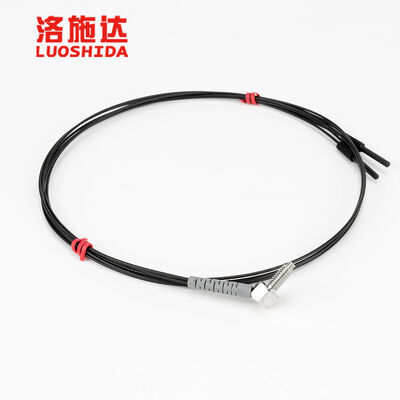

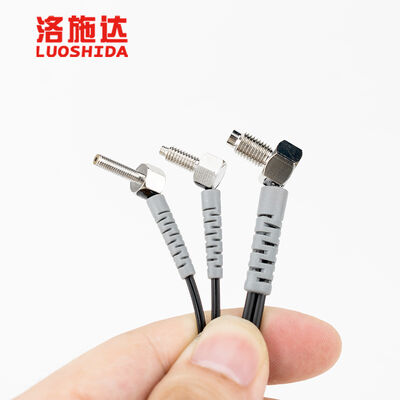

T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting

T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting
T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting

Large Image :  T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting

Product Details:
Place of Origin: Guangdong, China
Brand Name: LUOSHIDA
Certification: CE RoHS ISO
Model Number: T310-TZ/T410-TZ/T610-TZ
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: $3.8 /pieces
Packaging Details: Normal standard: individual package with labels and outside is normal brown box.
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000PCS per month

T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting

Description
Detection Mode: Through Beam (90° Elbow) Fiber Material: Plastic
Standard Cable Length: 1M

Parameter T310-TZ (M3) T410-TZ (M4) T610-TZ (M6)
Fiber Item T310-TZ T410-TZ T610-TZ
Detection Mode Through Beam (90° Elbow) Through Beam (90° Elbow) Through Beam (90° Elbow)
Fiber Material Plastic Plastic Plastic
Size of Fiber Cable D1.0 / OD2.2MM D1.0 / OD2.2MM D1.0 / OD2.2MM
Min. Object φ0.5MM φ0.6MM φ0.7MM
Sensing Distance 0-1000MM (1M) 0-1000MM (1M) 0-1000MM (1M)
Fiber Tube Material Brass with nickel Brass with nickel Brass with nickel
Fiber Tube Size M3*18MM M4*16MM M6*16MM
Thread Dimension M3 × 0.5MM (Length 11.5MM) M4 × 0.5MM (Length 8.5MM) M6 × 0.75MM (Length 8.5MM)
Front Tip Protrusion Flush Tip 2.5MM 2.5MM
Nut Hex Width 5.4MM 6.9MM 9.9MM
Elbow Base Diameter 5MM 5MM 5MM
Standard Cable Length 1M 1M 1M
Optical Feature 90° Pre-shaped (No Loss) 90° Pre-shaped (No Loss) 90° Pre-shaped (No Loss)
Joint Protection Soft Protective Sheath Soft Protective Sheath Soft Protective Sheath


T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting




Company Introduction

Luoshida Sensor (Dongguan) Co., Ltd.











Founded in 2012, Luoshida is a high-tech enterprise dedicated to the R&D, production, sales and service of sensors. Its core products cover a wide range of types, including inductive/capacitive proximity sensors, laser displacement sensors, through-beam/diffuse-reflective photoelectric sensors, fiber optic sensors, and color mark sensors, which are widely applied in industrial automation, smart manufacturing and electronic equipment.

All products are developed and produced in line with IEC standards. They have passed strict tests (EMC, IP, vibration impact, high-low temperature) and obtained EU CE certification and RoHS compliance.
With a team of experienced technicians, Luoshida adheres to the concept of "people-oriented, integrity, quality first, customer first". It provides customers with international-standard products, fast technical support and customized solutions.
Looking forward, Luoshida will continue to focus on technological progress, contributing to global industrial intelligent upgrading.
T610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor CountingT610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor CountingT610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor CountingT610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor CountingT610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor CountingT610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor CountingT610-TZ M6 Elbow Through Beam Fiber Optic Sensor 1000mm Range 2.2mm Plastic Core for High Speed Packaging Conveyor Counting

FAQ


Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
