Product Details:
|
| Theory: | Capacitance Sensor | Output: | Switching Transducer |
|---|---|---|---|
| Warranty: | 12 Months | Type: | Detection Distance Sensor |
| Housing Material: | PTFE | Power Supply: | 10-30VDC |
| High Light: | PTFE m18 proximity sensor,Corrosion Resistance m18 proximity sensor,Long Range capacitive prox |
||

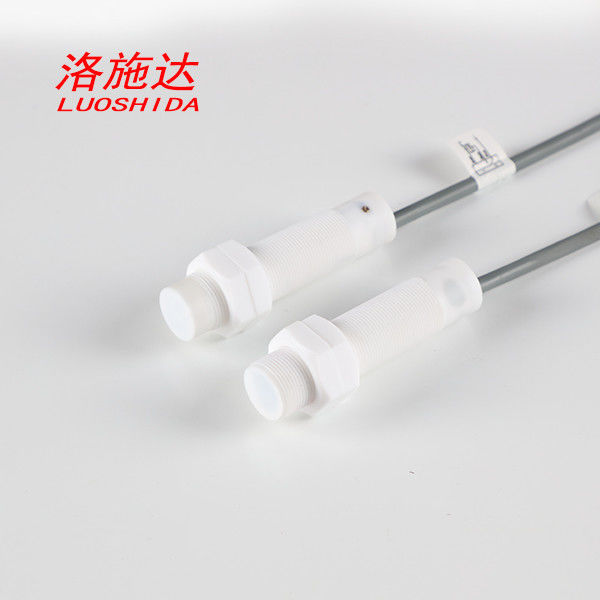

Dc M18 PTFE Corrosion Resistance Material Long Range Of Capacitive Proximity Sensor
Products Description :
Series : M18 Corrosion Resistant Capacitive Proximity Sensor
Size : M18*1*76mm
Housing Material : PTFE
Mounting : Shielded/Non-shielded
Sensing Distance Sn(mm): 8mm/15mm adjustable
Operating Voltage : 10-40V DC
Output function : NPN/PNP NO/NC
connection : 2M PUR cable
Datasheef of the sensor :
| DC M18 Corrosion Resistant Capacitive Proximity Sensor with cable | |||
| Size | M18*76mm | ||
| Mounting | ● shielded | ○ Non-shielded | |
| Sensing Distance Sn(mm) | 1~8mm adjustable | 1~15mm adjustable | |
| Housing Material | PTFE | ||
| With or Without LED | ● with LED | ||
| Operating Voltage | 10-30VDC | ||
| Ripple | <10% | ||
| No Load Current | <10mA | ||
| Max.Load Current | 150mA | ||
| Leakage Current | <0.01mA | ||
| Voltage Drop | <1.5V | ||
| Switching Frequency | 50Hz | ||
| Response Time | 1.5ms | ||
| Switching Hysteresis | <15%(Sr) | ||
| Repeat Accuracy | <5%(Sr) | ||
| Protection Category | IP67 | ||
| Operating Temperature | -25°C - +70°C | ||
| Temperature Drift | <10%(Sr) | ||
| Short Circuit Protection | YES | ||
| Overload Trip Point | 180mA | ||
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) | ||
| Shock/Vibration | IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2 | ||
| Material Active Face | PTFE | ||
| Connection | D5.0 3*0.34 2M PUR | ||
| DC 3 wire 10-30V NPN NO | C1P18*NO-TEL-PUR | C2P18*NO-TEL-PUR | |
| DC 3 wire 10-30V NPN NC | C1P18*NC-TEL-PUR | C2P18*NC-TEL-PUR | |
| DC 3 wire 10-30V PNP NO | C1P18*PO-TEL-PUR | C2P18*PO-TEL-PUR | |
| DC 3 wire 10-30V PNP NC | C1P18*PC-TEL-PUR | C2P18*PC-TEL-PUR | |
FAQ :
Q1 , What about the samples?
A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.
Q2, What is the MOQ?
A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.
Q3, How about the delivery time?
A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.
Q4, How about the after-sales service?
A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.
Q5, How about the packing?
A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
