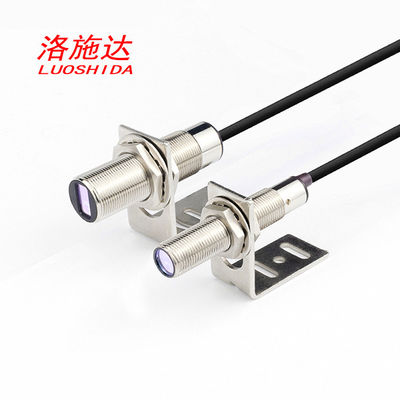

Cylindrical Diffuse Mode DC Proximity Switch M12 With Sensing Distance Adjustable

Cylindrical Diffuse Mode DC Proximity Switch M12 With Sensing Distance Adjustable
Cylindrical Diffuse Mode DC Proximity Switch M12 With Sensing Distance Adjustable

Large Image :  Cylindrical Diffuse Mode DC Proximity Switch M12 With Sensing Distance Adjustable

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE RoHS
Model Number: LTD-12NO, LTD-18PO
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 1000PCS per month

Cylindrical Diffuse Mode DC Proximity Switch M12 With Sensing Distance Adjustable

Description
Name: Laser Proximity Sensor Type: Diffuse Mode
Size: M12*58mm/m18*60mm Distance: 300mm/500mm Adjustable
Output: NPN PNP NO NC NO+NC Light Source: Red(660nm)
High Light:

Diffuse Mode proximity switch m12 Luoshida

,

Luoshida Diffuse Mode proximity switch m12

,

Diffuse Mode proximity switch Luoshida m12

DC M12 M18 Cylindrical Diffuse Mode Laser Proximity Sensor Switch With Sensing Distance Adjustable



Quick detail information about the sensor :

Series :DC M12 laser sensor diffuse mode
Size :M12*1*58mm
Housing Material :brass nickel plated
Spot size :2-3mm
The light source :Red(660nm)
Sensing Distance Sn :2-300mm adjustable
Operating Voltage :DC 10-30V
Output function :NPN/PNP NO/NC
Connector :2M PVC cable



Series :DC M18 laser sensor diffuse mode
Size :M18*1*68mm
Housing Material :brass nickel plated
Spot size :2-3mm spot
The light source :Red(660nm)
Sensing Distance Sn :1-300mm adjustable
Operating Voltage :DC 10-30V
Output function :NPN/PNP NO/NC
Connector :2M PVC cable





Specification of the sensor :

DC M18 laser sensor diffuse mode
Size M18*60mm
Mounting ● Shielded
Sensing Distance Sn:(M) 300mm/500mm adjustable
Housing Material Brass Nickel plated
●With or Without LED ● With LED
The light source Red(660nm)
Operating Voltage 10-30VDC
DC Ripple <10%
No Load Current <10mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 100Hz
Response Time 5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5-10%(Sr)
Protection Category IP65
Operating Temperature 0°C - 50°C
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 180mA
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face Filter Mirror
Connection D5 3*0.34/4*0.34 2M PVC
DC 3-wire 10-30V NPN NO LTD-18*NO
DC 3-wire 10-30V NPN NO+NC LTD-18*NS
DC 3-wire 10-30V PNP NO LTD-18*PO
DC 3-wire 10-30V PNP NO+NC LTD-18*PS

Cylindrical Diffuse Mode DC Proximity Switch M12 With Sensing Distance Adjustable 0




Friendly reminder of the sensor :
1. When installing the photoelectric switch and laser switch, ensure that the switch is perpendicular to the detection object as much as possible. When installing side by side, it must not be installed too densely. There must be a certain interval. The interval distance requirement is directly related to the actual use environment, so as not to cause interference after installation Prevail.



2.The factory detection standard of photoelectric switch and laser switch is a square pure white paper baffle. The actual detection distance will change due to the difference of the color reflectivity of the picked object.



3.Laser and photoelectric products are not suitable for use in dusty, oily, humid and vibrating environments. The operating temperature is 0-50℃. The section of the switch head to the middle amplifier part has an optical fiber cable and cannot be folded. It is not resistant to the interference of the motor and the inverter. It should be kept at a certain distance. The working voltage is DC10-30V and the load current should not exceed 100 mA. (The switch cannot be used in areas involving personal safety, such as anti-pinching.



4.The detection standard for laser diffuse reflection and photoelectric diffuse reflection products is A4 pure white cardboard. The detection distance of the product is greatly affected by the color and reflectance of the detected object. The brighter the color, the better the reflection, the longer the detection distance of the product, the color The darker, the worse the reflection, the shorter the detection distance. If a black object is detected, the actual detection distance may only be about 20% of the factory detection distance.



FAQ :


Q1. What about the samples?
A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.



Q2. What is the MOQ?
A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.



Q3. How about the delivery time?
A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.



Q4. How about the after-sales service?
A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.



Q5. How about the packing?
A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
