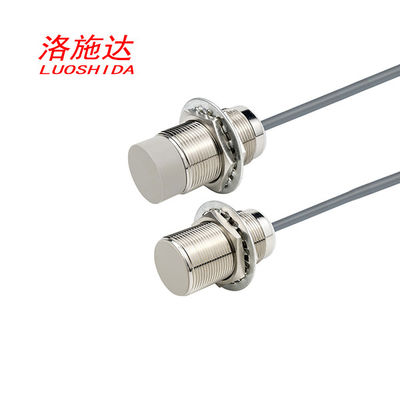

Non Flush 25mm Distance 2 Wire Proximity Sensor Cylindrical Inductive 20-250VAC M30 Metal Tube

Certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
I'm Online Chat Now

Non Flush 25mm Distance 2 Wire Proximity Sensor Cylindrical Inductive 20-250VAC M30 Metal Tube

Non Flush 25mm Distance 2 Wire Proximity Sensor Cylindrical Inductive 20-250VAC M30 Metal Tube
Non Flush 25mm Distance 2 Wire Proximity Sensor Cylindrical Inductive 20-250VAC M30 Metal Tube

Large Image :  Non Flush 25mm Distance 2 Wire Proximity Sensor Cylindrical Inductive 20-250VAC M30 Metal Tube

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE ROHS
Model Number: I2B3025AO
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 3000PCS per month

Non Flush 25mm Distance 2 Wire Proximity Sensor Cylindrical Inductive 20-250VAC M30 Metal Tube

Description
Product Name: 2 Wire Proximity Sensor Size: M30*55mm
Voltage: 20-250VAC Material: Brass With Nickel
Distance: 25mm Class: IP67
High Light:

25mm 2 Wire Proximity Sensor

,

Non Flush 2 Wire Proximity Sensor

,

250V two wire proximity switch

20-250VAC 2Wire M30 Metal Tube Non Flush 25mm Distance Cylindrical Inductive Proximity Sensor
Brief sensor introdcution :
Series : M30 AC 2-Wire Inductive Proximity Sensor
Size : M30*1.5*55mm
Housing Material : brass nickel plated
Mounting : Shielded/Non-shielded
Sensing Distance Sn(mm): 10mm/15mm/25mm
Operating Voltage : 20-250V AC
Output function : NO/NC
connection : 2M PVC cable

Specification about the sensor :

M30 AC 2 wire inductive proximity sensor
SizeM30*1.5*55mmM30*1.5*55mm
Mounting● shielded○ Non-shielded
Sensing Distance Sn(mm)10mm /16mm15mm/25mm
Housing MaterialBrass nickel plated
With or Without LED● with LED
Operating Voltage20-250VAC
Ripple<1.8mA
No Load Current5A(20ms)
Max.Load Current400mA
Leakage Current<1.8mA
Voltage Drop<8VAC AT400mA
Switching Frequency<25Hz
Response Time10ms
Switching Hysteresis<15%(Sr)
Repeat Accuracy<5%(Sr)
Protection CategoryIP67
Operating Temperature-25°C - +70°C
Temperature Drift<10%(Sr)
Short Circuit Protection-
Overload Trip Point120mA
EMCRFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/VibrationIEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active FacePBT
ConnectionD5 2*0.34 2M PVC cable
AC 2 wire 20-250V AOI1B30*AOI2B30*AO
AC 2 wire 20-250V ACI1B30*ACI2B30*AC

Non Flush 25mm Distance 2 Wire Proximity Sensor Cylindrical Inductive 20-250VAC M30 Metal Tube 0

Kindly reminder about the sensor application :

1.There are two types of proximity switches, flush and non-flush. If the mounting bracket is made of metal, the shell of the non-flush switch must be exposed to a certain length during installation. For flush installation, no exposure or only a small amount of exposure is required. If installed side by side, There must be a certain interval between the switches. The specific interval is subject to no interference after installation. If the mounting bracket is non-metal, then there is no installation limit on the distance to find the object.


2.The factory inspection standard of the inductive proximity switch is a 1mm thick square Fe37 iron sheet. The detection distance in actual application will vary with the material of the object to be tested.


3.Capacitive proximity switches can detect almost all objects with static electricity. The detection distance of the product will be affected by the thickness, size, conductivity, and surface flatness of the detected object. The thicker the detected object, the larger the size. The stronger the conductivity, the smoother the surface, the easier it is to detect, and the longer the detection distance.



Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;


Delivery time :
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the istallation of the parts. if you have any questions, please do not hesitate to contact us at any time.
