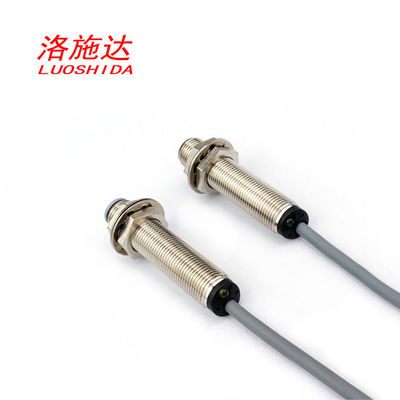

Cylindrical Through Beam M12 Proximity Sensor Switch Laser Displacement Sensor

Cylindrical Through Beam M12 Proximity Sensor Switch Laser Displacement Sensor
Cylindrical Through Beam M12 Proximity Sensor Switch Laser Displacement Sensor
Cylindrical Through Beam M12 Proximity Sensor Switch Laser Displacement Sensor Cylindrical Through Beam M12 Proximity Sensor Switch Laser Displacement Sensor

Large Image :  Cylindrical Through Beam M12 Proximity Sensor Switch Laser Displacement Sensor

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE ROHS
Model Number: LTT-12PO
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 3000PCS per month

Cylindrical Through Beam M12 Proximity Sensor Switch Laser Displacement Sensor

Description
Name: Laser Proximity Sensor Size: M12*50mm
Material: Brass With Nickel Type: Through Beam Mode
Light Source: Red(660nm) Voltage: 10-30VDC
High Light:

Luoshida Cylindrical Through Beam m12 proximity sensor

,

Cylindrical Through Beam m12 proximity sensor Luoshida

,

Luoshida m12 laser displacement sensor

DC M12 Cylindrical Through Beam Laser Proximity Sensor Switch Laser Displacement Sensor



Brief introduction about the sensor :

Series :Through Beam M12 laser sensor
Size :M12*1*50mm
Housing Material :brass nickel plated
Spot size :2-3mm spot
The light source :Red(660nm)
Sensing Distance Sn :50m
Operating Voltage :DC 10-30V
Output function :NPN/PNP NO/NC
Connector :2M PVC cable



Specification of the sensor :

DC M12 laser sensor through beam mode
Size M12*50mm
Mounting ● Shielded
Sensing Distance Sn:(M) 50m
Housing Material Brass Nickel plated
●With or Without LED ● With LED
The light source Red(660nm)
Operating Voltage 10-30VDC
DC Ripple <10%
No Load Current Emitter<10mA,Receiver<11mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 100Hz
Response Time 5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5-10%(Sr)
Protection Category IP65
Operating Temperature 0°C - 50°C
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 180mA
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face Filter Mirror
Connection D4 2*0.15/3*0.15/4*0.15 2M PVC
DC 3-wire 10-30V NPN NO LTT-1250MNO
DC 3-wire 10-30V NPN NC LTT-1250MNC
DC 3-wire 10-30V PNP NO LTT-1250MPO
DC 3-wire 10-30V PNP NC LTT-1250MPC





Friendly reminder of the sensor :
1. When installing the photoelectric switch and laser switch, ensure that the switch is perpendicular to the detection object as much as possible. When installing side by side, it must not be installed too densely. There must be a certain interval. The interval distance requirement is directly related to the actual use environment, so as not to cause interference after installation Prevail.



2.The factory detection standard of photoelectric switch and laser switch is a square pure white paper baffle. The actual detection distance will change due to the difference of the color reflectivity of the picked object.



3.Laser and photoelectric products are not suitable for use in dusty, oily, humid and vibrating environments. The operating temperature is 0-50℃. The section of the switch head to the middle amplifier part has an optical fiber cable and cannot be folded. It is not resistant to the interference of the motor and the inverter. It should be kept at a certain distance. The working voltage is DC10-30V and the load current should not exceed 100 mA. (The switch cannot be used in areas involving personal safety, such as anti-pinching.



4.The detection standard for laser diffuse reflection and photoelectric diffuse reflection products is A4 pure white cardboard. The detection distance of the product is greatly affected by the color and reflectance of the detected object. The brighter the color, the better the reflection, the longer the detection distance of the product, the color The darker, the worse the reflection, the shorter the detection distance. If a black object is detected, the actual detection distance may only be about 20% of the factory detection distance.



FAQ :


Q1. What about the samples?
A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.



Q2. What is the MOQ?
A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.



Q3. How about the delivery time?
A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.



Q4. How about the after-sales service?
A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.



Q5. How about the packing?
A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
