Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection

Certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
I'm Online Chat Now

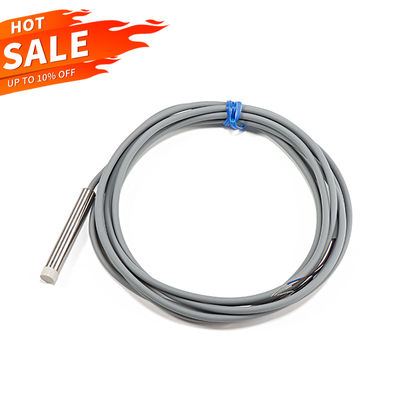

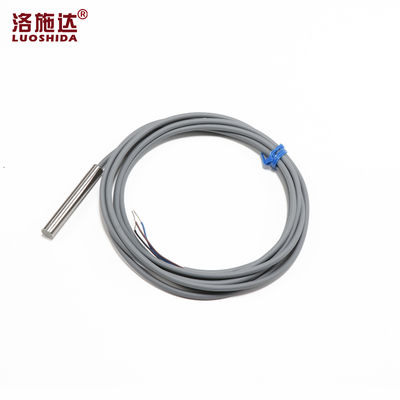

Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection

Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection
Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection

Large Image :  Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection

Product Details:
Place of Origin: China
Brand Name: Luoshida
Certification: CE RoHS
Model Number: D6.5
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Normal standard: individual package with labels and outside is normal brown box.
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000PCS per month

Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection

Description

Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection




Specification of the sensor :

D6.5 3-wire Capacitive Proximity Sensor
Size D6.5*45 D6.5*45
Mounting shielded Non-shielded
Sensing Distance Sn(mm) 1mm 2mm
Housing Material Stainless steel Stainless steel
With or Without LED ● with yellow LED
Operating Voltage 10-30VDC
Ripple <10%
No Load Current <10mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 100Hz 80Hz
Response Time 1.5ms 1.5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5.0%(Sr)
Protection Category IP67
Operating Temperature -25°C... +70°C
Temperature Drift <15%(Sr)
Short Circuit Protection YES
Overload Trip Point 280mA
Sensing surface material PBT
Weight About 29.9g About 28.7g
Certificates CE RoHS
Connection D3.0mm 2M PVC cable 3*0.15mm

Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection 0




Luoshida Sensor (Dongguan) Co., Ltd.

Founded in 2012, Luoshida is a high-tech enterprise dedicated to the R&D, production, sales and service of sensors. Its core products cover a wide range of types, including inductive/capacitive proximity sensors, laser displacement sensors, through-beam/diffuse-reflective photoelectric sensors, fiber optical sensors, and color mark sensors, which are widely applied in industrial automation, smart manufacturing and electronic equipment.
All products are developed and produced in line with IEC standards. They have passed strict tests (EMC, IP, vibration impact, high-low temperature) and obtained EU CE certification and ROHS compliance.
With a team of experienced technicians, Luoshida adheres to the concept of "people-oriented, integrity, quality first, customer first". It provides customers with international-standard products, fast technical support and customized solutions.
Looking forward, Luoshida will continue to focus on technological progress, contributing to global industrial intelligent upgrading.
Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection 1Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection 2Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection 3Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection 4Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection 5Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection 6Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection 7

Shipping ways
* Our normal shipping way is international express, such as DHL,FEDEX, TNT and so on;
* When the gross weight is over 45kg, air transportation is also a good way for the customers to save some cost;
* Sea transportation is also can be considered, but only appointed agent acceptable.


Payment term and delivery time
* Generaly speaking, 30% deposit in advance, balance paid before the shipping;
* Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee.


Delivery time
* the sensors will be shipped out in 3 days when we receive the payment if we have stocks;
* If no stocks, the delivery time will be 7-10days when we received the PO or deposit.


After-sales services
* The warranty period is 12 months
* If we send the wrong parts to you, free replacement will be available
* As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
