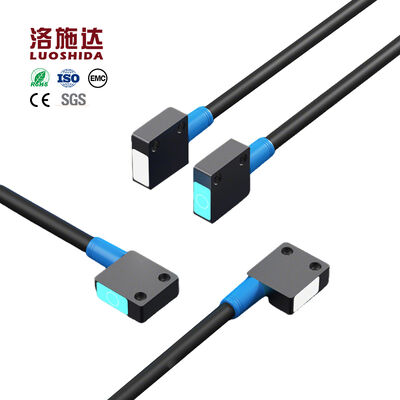

LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier

Certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
I'm Online Chat Now

LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier

LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier
LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier

Large Image :  LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier

Product Details:
Place of Origin: Guangdong, China
Brand Name: Luoshida
Certification: CE RoHS ISO
Model Number: Q40
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: $19.9/pieces
Packaging Details: Normal standard: individual package with labels and outside is normal brown box.
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000PCS per month

LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier

Description
Brand: LUOSHIDA Cable Length: 2 M
Sensing Distance: 10-100mm / 10-130mm Adjustable Output Mode: NPN / PNP, Normally Open / Normally Closed
Response Time: 5 Ms Housing Material: Aluminum Alloy
Light Option: A: 2mm Visible Small Laser Spot;B: Invisible Infrared Light Protection Grade: IP65
Operating Voltage: 10-30 VDC Working Temp: 0-50 ℃
Switching Frequency: 100 Hz Built-in Protection: Short-circuit & Overload Protection (180mA)

Specification of the sensor :



Product name Through Beam Laser Sensor
Detection Range 10–130mm adjustable
Light Source 2mm Visible Laser / Infrared
Output NPN / PNP NO NC
Warranty 12 Months
Shell Aluminum Alloy, IP65
Voltage 10–30 VDC
Frequency 100Hz
Protection Short-circuit & overload
Working Temp 0-50 ℃
Certificate CE RoHS

LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier 0



Luoshida Sensor (Dongguan) Co., Ltd.







Founded in 2012, Luoshida is a high-tech enterprise dedicated to the R&D, production, sales and service of sensors. Its core products cover a wide range of types, including inductive/capacitive proximity sensors, laser displacement sensors, through-beam/diffuse-reflective photoelectric sensors, fiber optical sensors, and color mark sensors, which are widely applied in industrial automation, smart manufacturing and electronic equipment.

All products are developed and produced in line with IEC standards. They have passed strict tests (EMC, IP, vibration impact, high-low temperature) and obtained EU CE certification and ROHS compliance.
With a team of experienced technicians, Luoshida adheres to the concept of "people-oriented, integrity, quality first, customer first". It provides customers with international-standard products, fast technical support and customized solutions.
Looking forward, Luoshida will continue to focus on technological progress, contributing to global industrial intelligent upgrading.


LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier 1LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier 2LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier 3LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier 4LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier 5LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier 6LUOSHIDA Q14 Mini Square Diffuse Photoelectric Sensor, Adjustable 10-130mm Range, Visible Laser / Infrared Optional, NPN PNP NO NC, IP65 Aluminum Alloy, Standalone Without Amplifier 7



FAQ




Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
