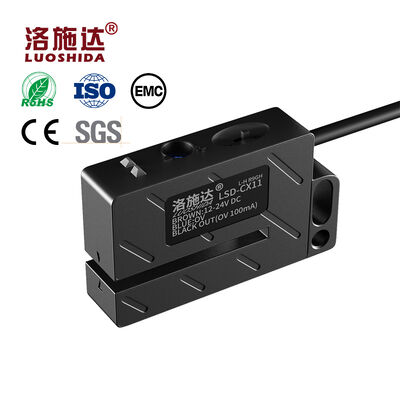

Product Details:
|
| Product Name: | CX11 Label Detection Sensor | Shell Material: | PBT Plastic |
|---|---|---|---|
| Operating Voltage: | 10-30VDC | Response Time: | 50us Max |
| Operating Current: | -20°C~ +55°C (No Freezing Allowed) | Wire Outlet Mode: | Φ4×2M-wires (4-wire System); Φ4×2M/M8 (4-core) |
| Operating Humidity: | 35%~95%RH Relative Humidity |
Specification of the sensor :
| Product Model | JM-CX11 (NPN Type), JM-CX11P (PNP Type) | |
| Protection Circuit | Power Reverse Connection and Output Short-Circuit Protection | |
| Operating Voltage | DC: 12~24V±10% | |
| Current Consumption | 15mA Max | |
| Load Current | 100mA Max at DC 24V | |
| Output Mode | N=NPN.NO.NC; P=PNP.NO.NC | |
| Housing Material | Plastic Case | |
| Operating Mode | NO/NC Selectable | |
| Response Time | 50us Max | |
| Operating Current | DC 1.1mA no-load | |
| Wire Outlet Mode | Φ4×2M-wires (4-wire system); Φ4×2M/M8 (4-core) | |
Founded in 2012, Luoshida is a high-tech enterprise dedicated to the R&D, production, sales and service of sensors. Its core products cover a wide range of types, including inductive/capacitive proximity sensors, laser displacement sensors, through-beam/diffuse-reflective photoelectric sensors, fiber optical sensors, and color mark sensors, which are widely applied in industrial automation, smart manufacturing and electronic equipment.
FAQ
Relevant information about the service :
Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.
Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.
After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
