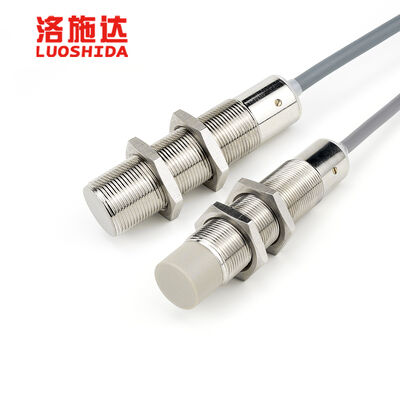

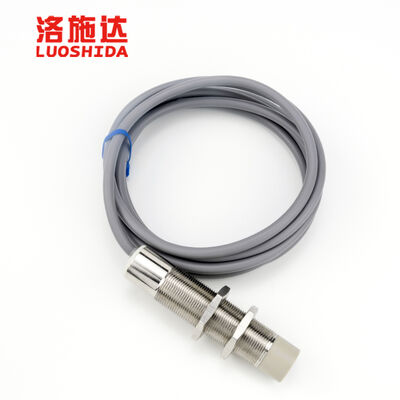

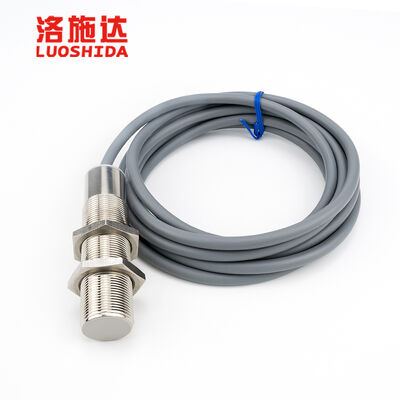

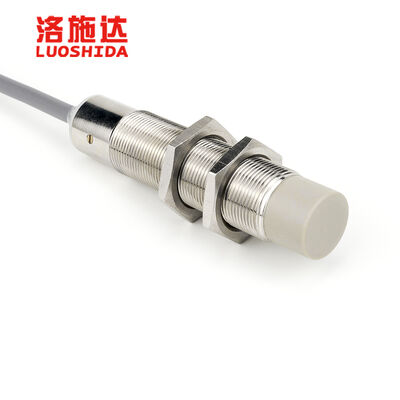

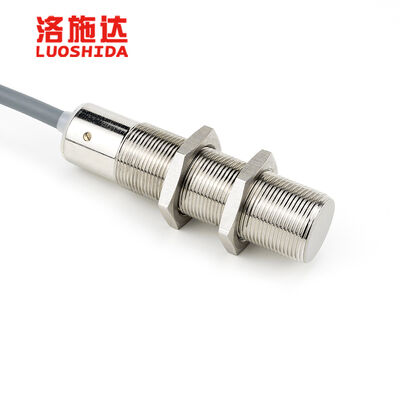

M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output

Certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
China Luo Shida Sensor (Dongguan) Co., Ltd. certification
I'm Online Chat Now

M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output

M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output
M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output

Large Image :  M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output

Product Details:
Place of Origin: Guangdong, China
Brand Name: Luoshida
Certification: CE RoHS ISO
Model Number: m18 capacitive sensor
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Negotiable
Packaging Details: Normal standard: individual package with labels and outside is normal brown box.
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 3000 Piece/Pieces per Month

M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output

Description
Sensing Disance: 5mm / 8mm / 16mm Mounting Way: Flush/non-flush
Output Type: Npn/pnp,normally Open/normally Closed Operating Voltage: 10-30VDC

Item Specification
Brand LOUSHIDA
Sensing Distance 5mm / 8mm / 16mm
Mounting Way Flush / Non-flush
Output Type NPN / PNP, Normally Open / Normally Closed (NO/NC)
Operating Voltage 10-30 VDC
No Load Current Less than 10mA
Maximum Load Current 150mA
Leakage Current Less than 0.01mA
Voltage Drop Less than 1.5V
Ripple Less than 10%
Switching Frequency 50Hz
Response Time Less than 1.5ms
Switching Hysteresis Less than 15% (Sr)
Repeat Accuracy Less than 5.0% (Sr)
Protection Class IP67
Operating Temperature -25°C to +70°C
Temperature Drift Less than 10% (Sr)
Overload Protection 150mA
Short Circuit Protection YES
Reverse Polarity Protection YES
Housing Material Brass with Nickel Plating
Standard Cable Length 2 Meters


M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output



Luoshida Sensor (Dongguan) Co., Ltd.













Founded in 2012, Luoshida is a high-tech enterprise dedicated to the R&D, production, sales and service of sensors. Its core products cover a wide range of types, including inductive/capacitive proximity sensors, laser displacement sensors, through-beam/diffuse-reflective photoelectric sensors, fiber optical sensors, and color mark sensors, which are widely applied in industrial automation, smart manufacturing and electronic equipment.

All products are developed and produced in line with IEC standards. They have passed strict tests (EMC, IP, vibration impact, high-low temperature) and obtained EU CE certification and ROHS compliance.
With a team of experienced technicians, Luoshida adheres to the concept of "people-oriented, integrity, quality first, customer first". It provides customers with international-standard products, fast technical support and customized solutions.
Looking forward, Luoshida will continue to focus on technological progress, contributing to global industrial intelligent upgrading.


M18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP OutputM18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP OutputM18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP OutputM18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP OutputM18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP OutputM18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP OutputM18 Capacitive Proximity Sensor for Liquid Tank Water Level Monitoring with Stainless Steel Housing 5mm 8mm 16mm Sensing Distance NPN PNP Output



FAQ




Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
